BR0 Economical Pressure
The BR0 series is applied to laboratory gas cylinder pressure relief valves with excellent accuracy and stability.
Product introduction
The BR0 series of steel cylinder pressure-reducing valves are suitable for gas source pressure output in laboratories, gas companies, scientific research and chemical units. They are designed as compact, economical, and practical pressure-reducing valves. Stainless steel or brass nickel-plated structures can be selected. Inlet pressure 25MPa; The outlet pressure is adjustable from 0 to 2.5MPa. Safe and reliable diaphragm pressure sensing design. The BR0 series of steel cylinder pressure-reducing valves are suitable for gas source pressure output in laboratories, gas companies, scientific research and chemical units. They are designed as compact, economical, and practical pressure-reducing valves. Stainless steel or brass nickel-plated structures can be selected. Inlet pressure 25MPa; The outlet pressure is adjustable from 0 to 2.5MPa. Safe and reliable diaphragm pressure sensing design. The BR0 series of steel cylinder pressure-reducing valves are suitable for gas source pressure output in laboratories, gas companies, scientific research and chemical units. They are designed as compact, economical, and practical pressure-reducing valves. Stainless steel or brass nickel-plated structures can be selected. Inlet pressure 25MPa; The outlet pressure is adjustable from 0 to 2.5MPa. Safe and reliable diaphragm pressure sensing design.
Technical parameters
● Maximum inlet pressure 3000psi (207bar)
● Pressure control range 0-500psi (34.4bar)
● Flow coefficient (CV) 0.06
● NPT 1/4 "F threaded connection
● Weight 0.84KG
Installation dimensions

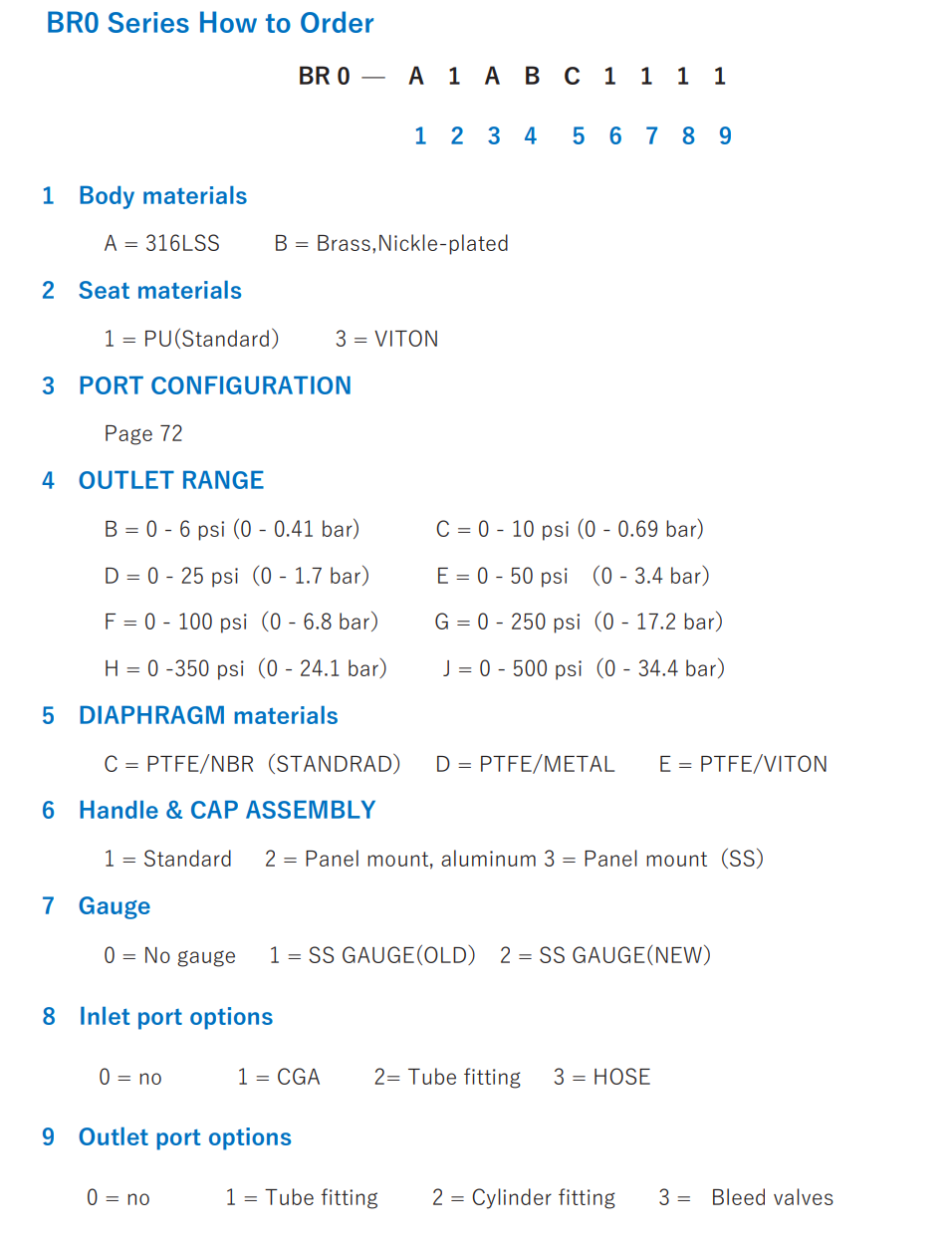

How to Order
