BR10 High Sensitive Low Pressure

BR10 is designed according to the structural characteristics of BR1 and BR0, enabling pressure control at low pressure with high sensitivity and high flow to minimize attenuation. It is widely used in the fluid output of low-pressure systems and retains the exterior size of BR1 for better exchange.

Product introduction

● Can be used for corrosive gases or liquids

● Optional stainless steel, VITON diaphragm seal

● 316L stainless steel body

● Imported with a 20um/60um filter element

Technical parameters

● Maximum inlet pressure 300psi (20.7bar)

● Pressure control range 0 to 250psi (17.2bar)

● Flow coefficient (CV) 0.2

● NPT1/4 "F threaded connection

● Maximum operating temperature+204 ℃ (400 ℉)

Installation dimensions

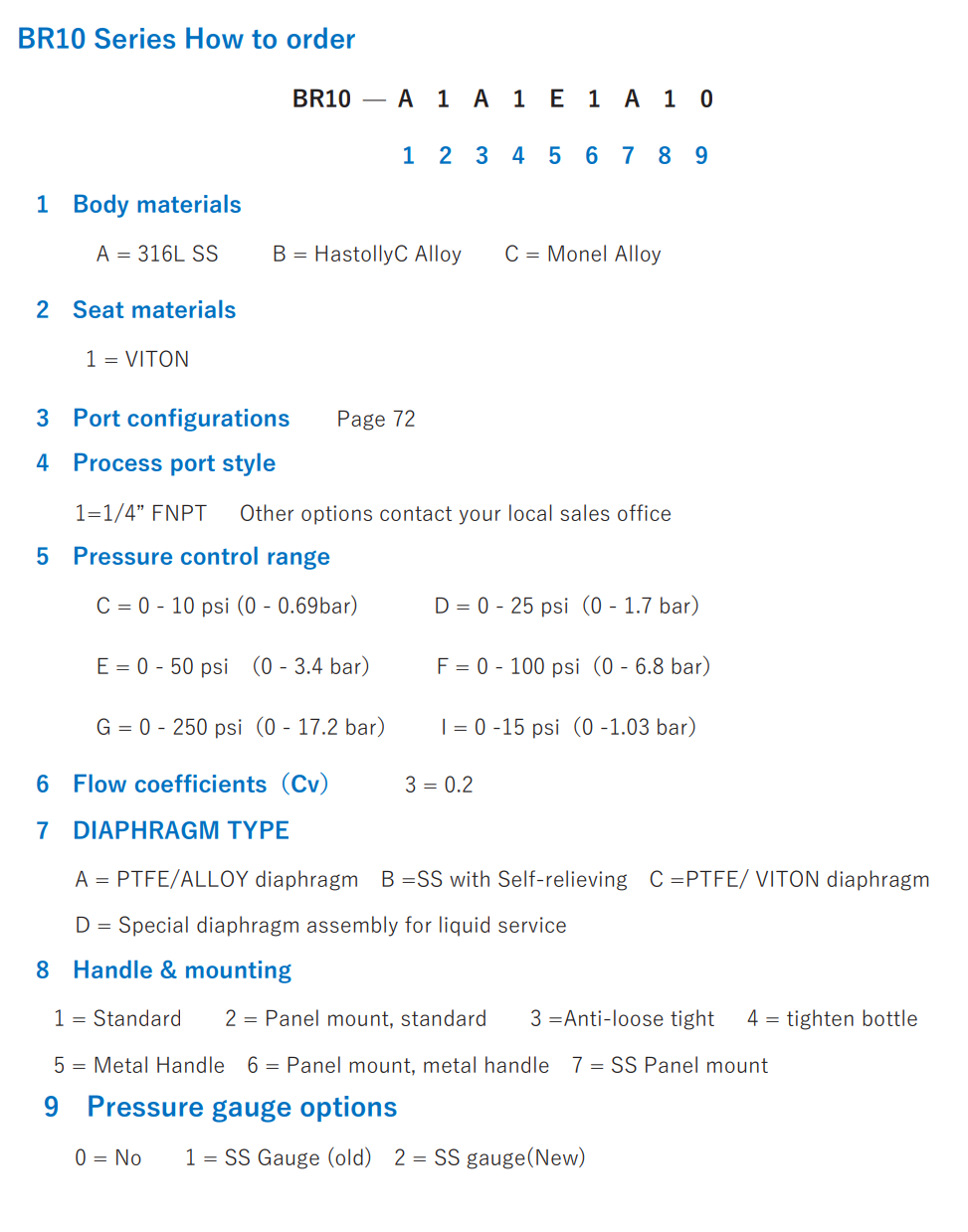

How to order
