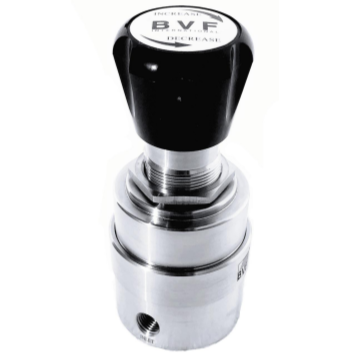

BR7 Micro-adjust High accuracy

BR7 series uses 316L stainless steel bellows structure design, used for low pressure range of precision adjustment control, large straight.The radial bellows without perforation improves the pressure sensing sensitivity for accurate adjustment.

Product introduction

● Can be used for corrosive gases or liquids

● Corrugated pipe structure design

● 316L stainless steel body

● Imported with 20um filter element

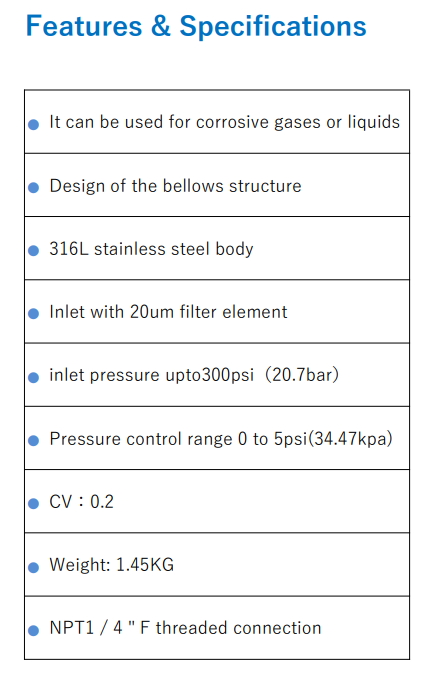

Technical parameters

● Maximum inlet pressure 300psi (20.7bar)

● Pressure control range: 0 to 5psi (34.47kPa)

● Flow coefficient (CV) 0.2

● NPT1/4 "F threaded connection

● Weight 1.45K

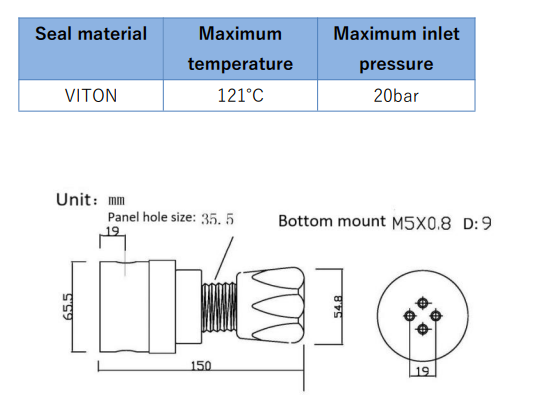

Installation dimensions

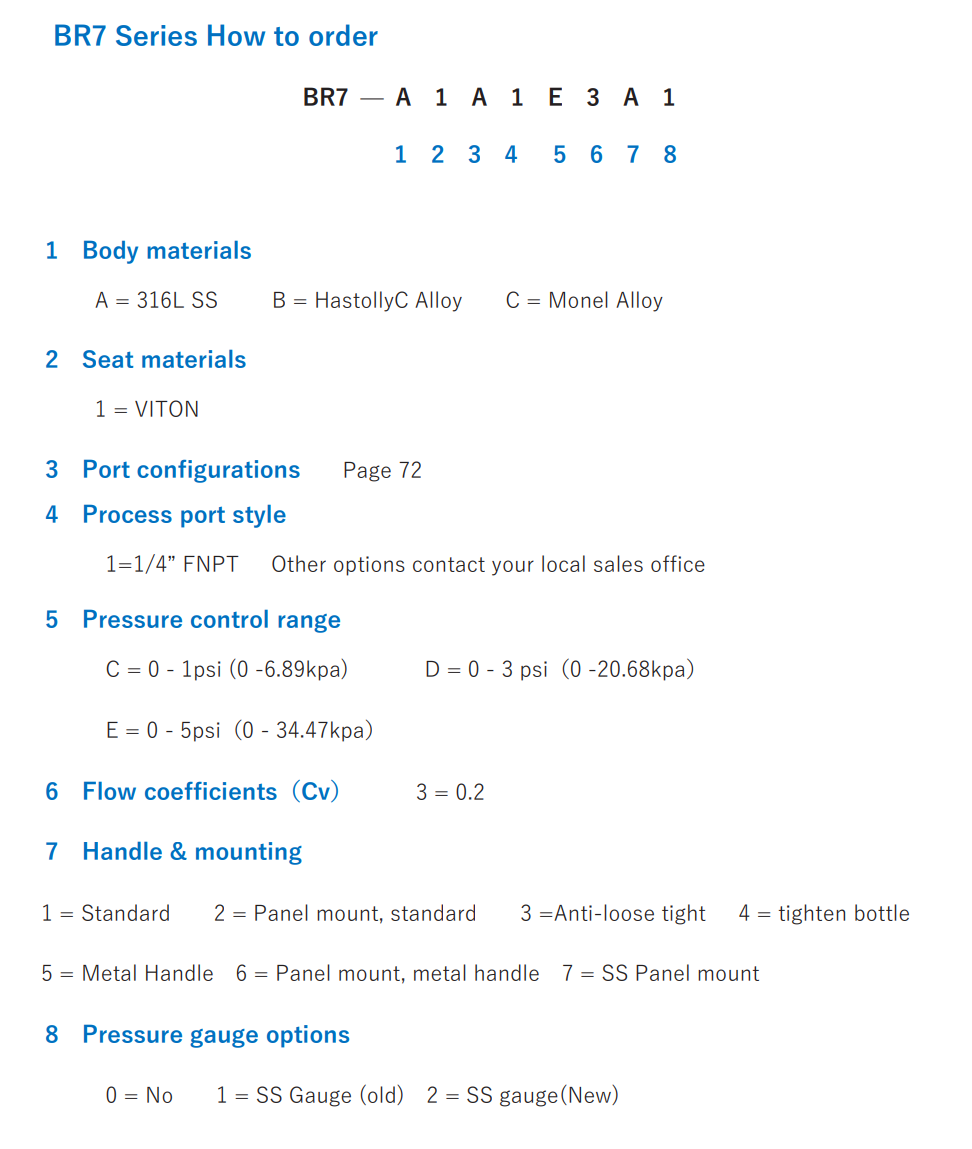

How to order
