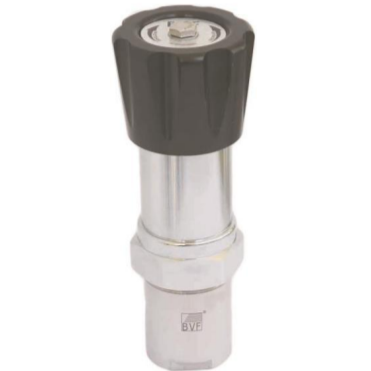

BR6 Diaphragm High Pressure

The BR6 Series pressure regulator is designed to meet the demands for outlet pressures up to 1500 psig while maintaining superior corrosion protection.The optional self-relieving feature provides an additional level in operational ease,as it allows for trapped downstream pressure to be safely vented to atmosphere through the bonnet.

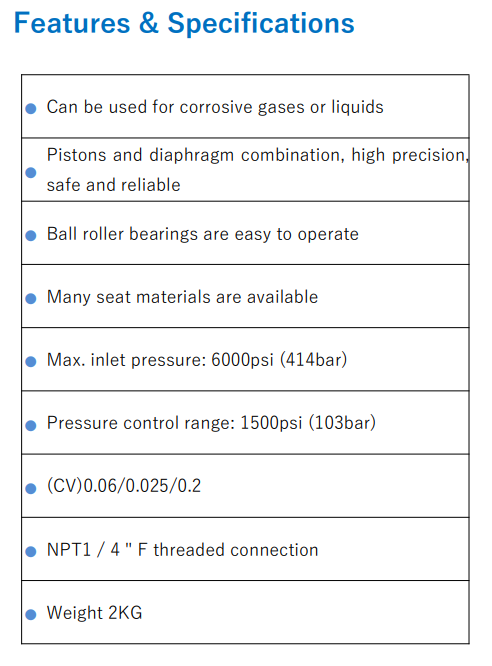

Product introduction

● Can be used for corrosive gases or liquids

● The combination of piston and diaphragm ensures high precision, safety, and reliability

● Needle roller bearings are easy to operate

● Multiple valve seat sealing materials are available

Technical parameters

● Maximum inlet pressure 6000psi (414bar)

● Pressure control range 1500psi (103bar)

● Flow coefficient (CV) 0.06/0.025/0.2

● NPT1/4 "F threaded connection

● Weight 2KG

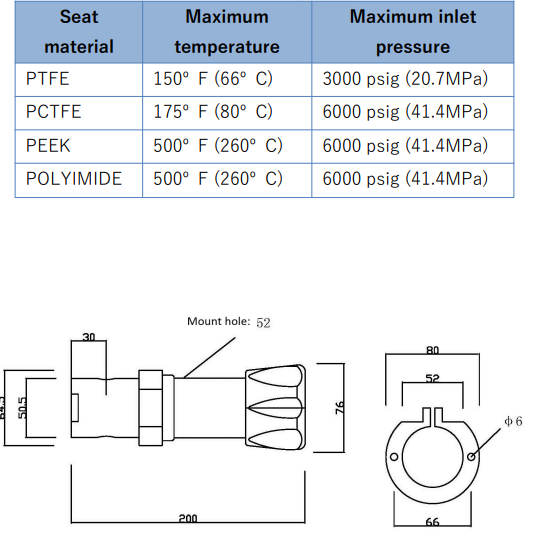

Installation dimensions

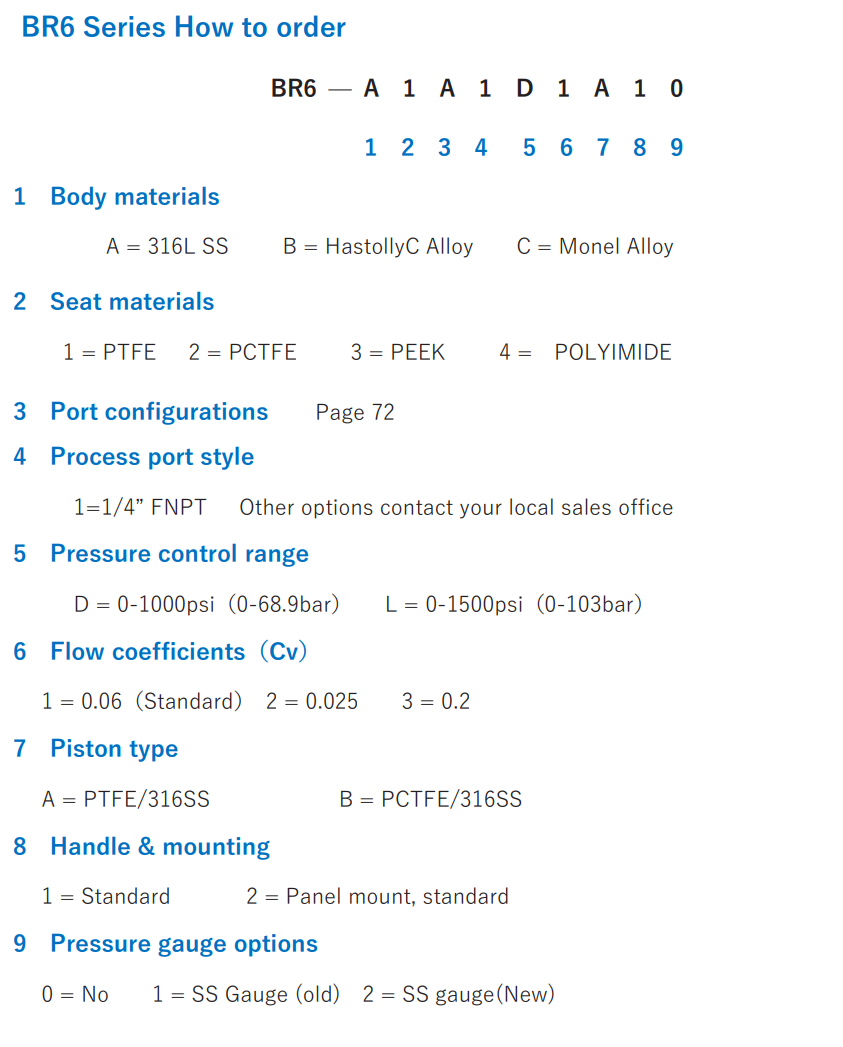

How to order
