BM Terminal Gas Control

BM is used for end pressure adjustment with single stage diaphragm relief valve outlet.

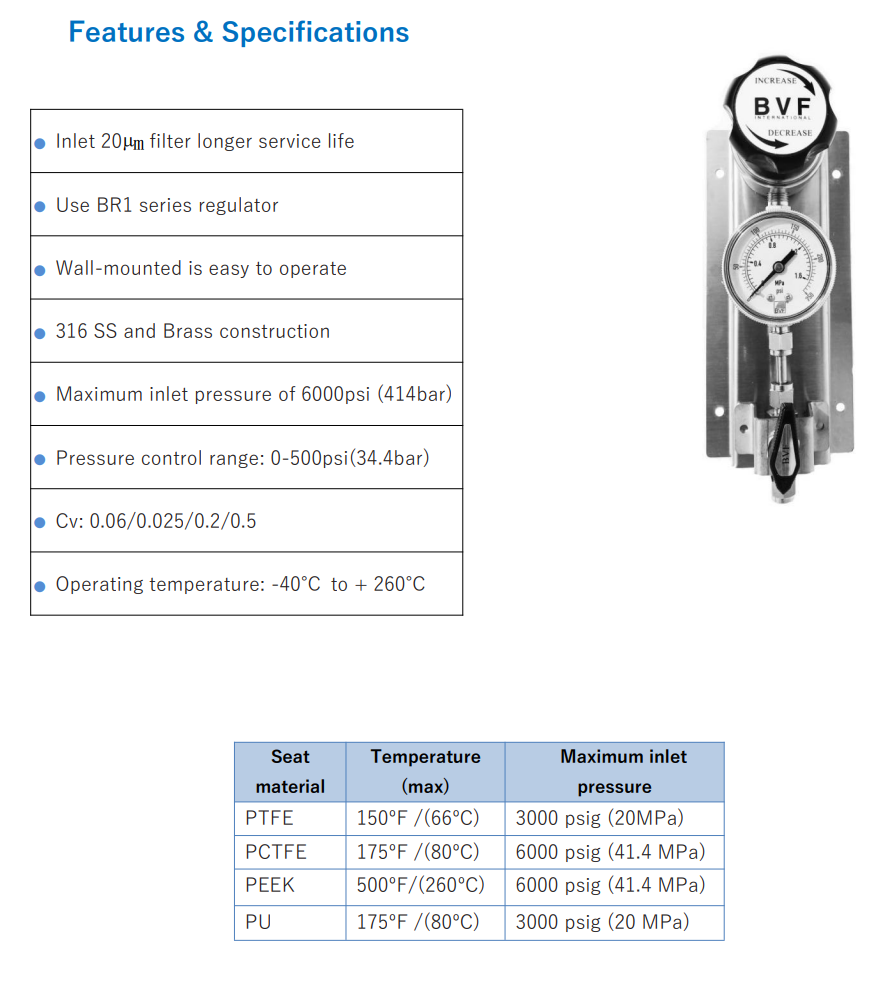

Product introduction

● Inlet 20 µ m filter increases service life

● Adopting BR1 pressure-reducing valve

● Fixed panel installation

● Body material: 316L stainless steel, copper plated with nickel

Technical parameters

● Maximum inlet pressure 6000psi (414bar)

● Pressure control range 0-500psi (34.4bar)

● Flow coefficient (CV) 0.06/0.025/0.2/0.5

● Operating temperature: -40 ℃ to+260 ℃

Installation dimensions

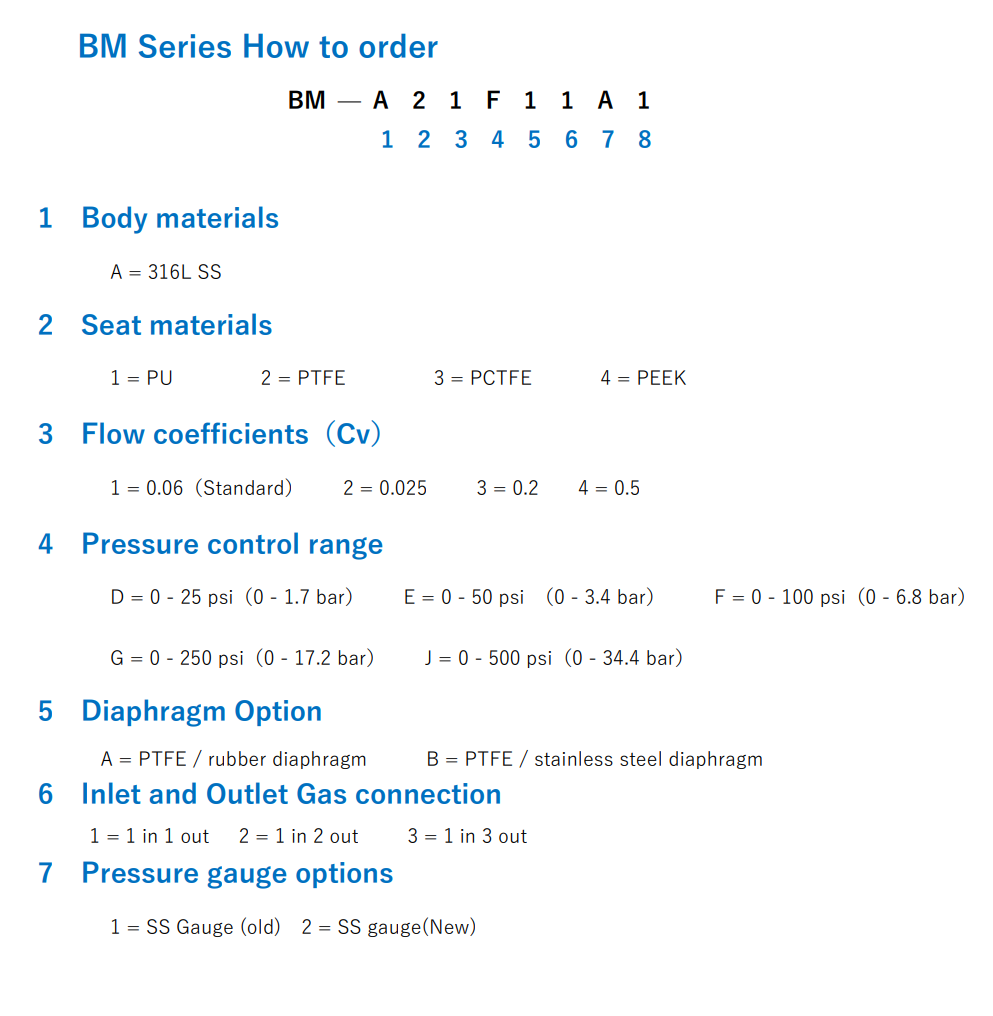

How to order
