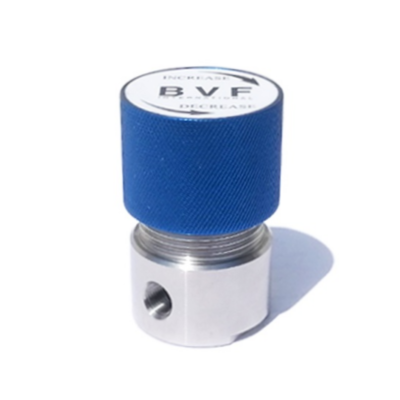

BP12 Medium-high MINI Back Pressure

BP12 series is a mini stainless steel piston induction back pressure regulator , light in weight, small in installation volume and light in weight, suitable for the use of small space.

Product introduction

● Compact piston design structure

● 316L stainless steel material

● Used for corrosive gases or liquids

● Small internal volume

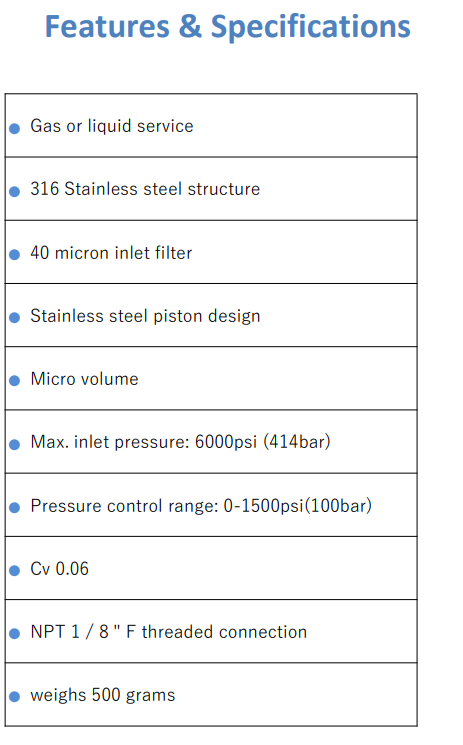

Technical parameters

● Pressure control range 0-1000psi (100bar)

● Operating temperature -26 ℃ -260 ℃

● Flow coefficient (CV) 0.2

● NPT 1/8 "F threaded connection

● Weight 500g

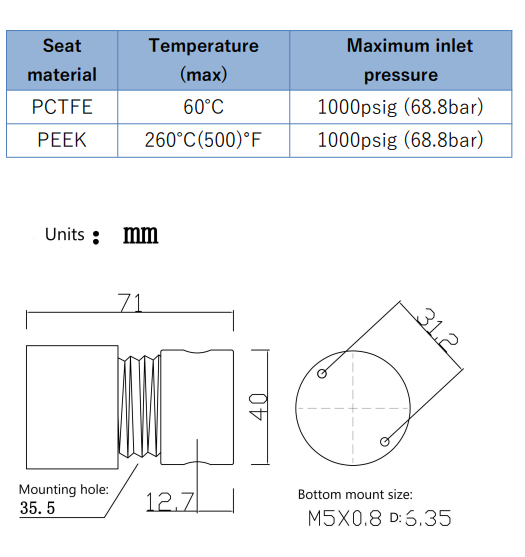

Installation dimensions

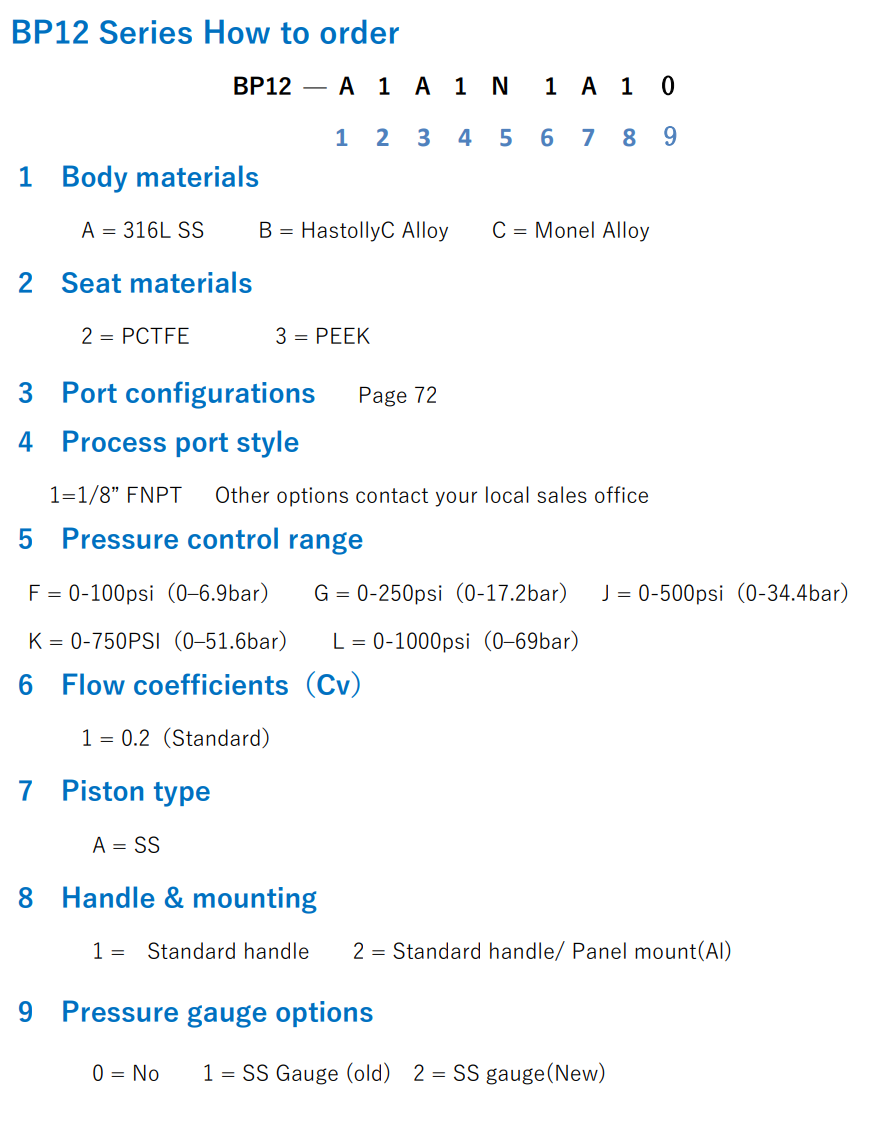

How to order
