BP6 Medium Pressure Back Pressure

BP6 is provided by the piston diaphragm assembly for the maximum sensitivity discharge during the system over pressure. The application of the piston diaphragm assembly makes the pressure sensitive to effectively improve.

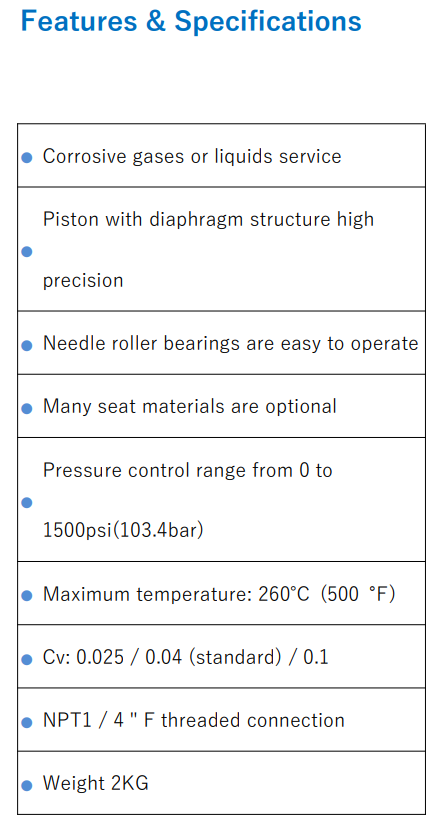

Product introduction

● Can be used for corrosive gases or liquids

● Adopting a piston diaphragm structure with high precision

● Needle roller bearings are easy to operate

● Multiple valve seat sealing materials are available

Technical parameters

● Pressure control range 0 to 1500psi (103.4bar)

● Maximum operating temperature 260 ℃ (500 ℉)

● Flow coefficient (CV) 0.025/0.04 (standard)/0.1

● NPT1/4 "F threaded connection

● Weight 2K
